High-grade hydraulic system
Premium hydraulic components maintain stable three-direction pressure for consistent bonding results.
High-Frequency A-Frame Press
Product Information
Model Code202209-0022
BrandPhu Vinh Phi
OriginVietnam
Share Product
TECHNICAL SPECIFICATIONS OF HIGH-FREQUENCY A-FRAME PRESS
| Model | Power Supply | High-Frequency Power | Rated Frequency | Worktable Size | Operating Method | Machine Dimensions (L × W × H) | Vertical / Table / Horizontal Pressure |
|---|---|---|---|---|---|---|---|
| GJM-QL-35B-JY | AC-380V-50Hz | 20KW | 6.78MHz | 2460x1250mm | Three-direction hydraulic | 3500x1650x2100mm | 6T / 25T / 4T |
- Manufacturer: Phu Vinh Phi - Vietnam
- Origin: Vietnam
- Condition: 100% New
- Warranty: 18 months
- Recommendation: A-frame gluing machine manufactured and installed by Phu Vinh Phi at the customer's workshop
Key Features:
- Machine manufactured with imported components from Taiwan, Japan
- Three-direction hydraulic clamping with HF heating bonds door frames, cabinet mitres, and edge-band panels in a single cycle
- Premium hydraulic system maintains stable three-direction pressure for consistent bonding results
Engineering advantages designed into every machine
Independent pressure controls
Dedicated switches let operators tune vertical, horizontal, and platen forces for each job.
One-touch touchscreen interface
User-friendly HMI stores pressing recipes and guides each cycle with clear prompts.
- Three-direction hydraulic rams synchronize via PLC to prevent racking.
- Independent oil-pressure switches enable quick tuning for each component.
- Touchscreen HMI with one-touch cycle start shortens operator training.
Ideal applications

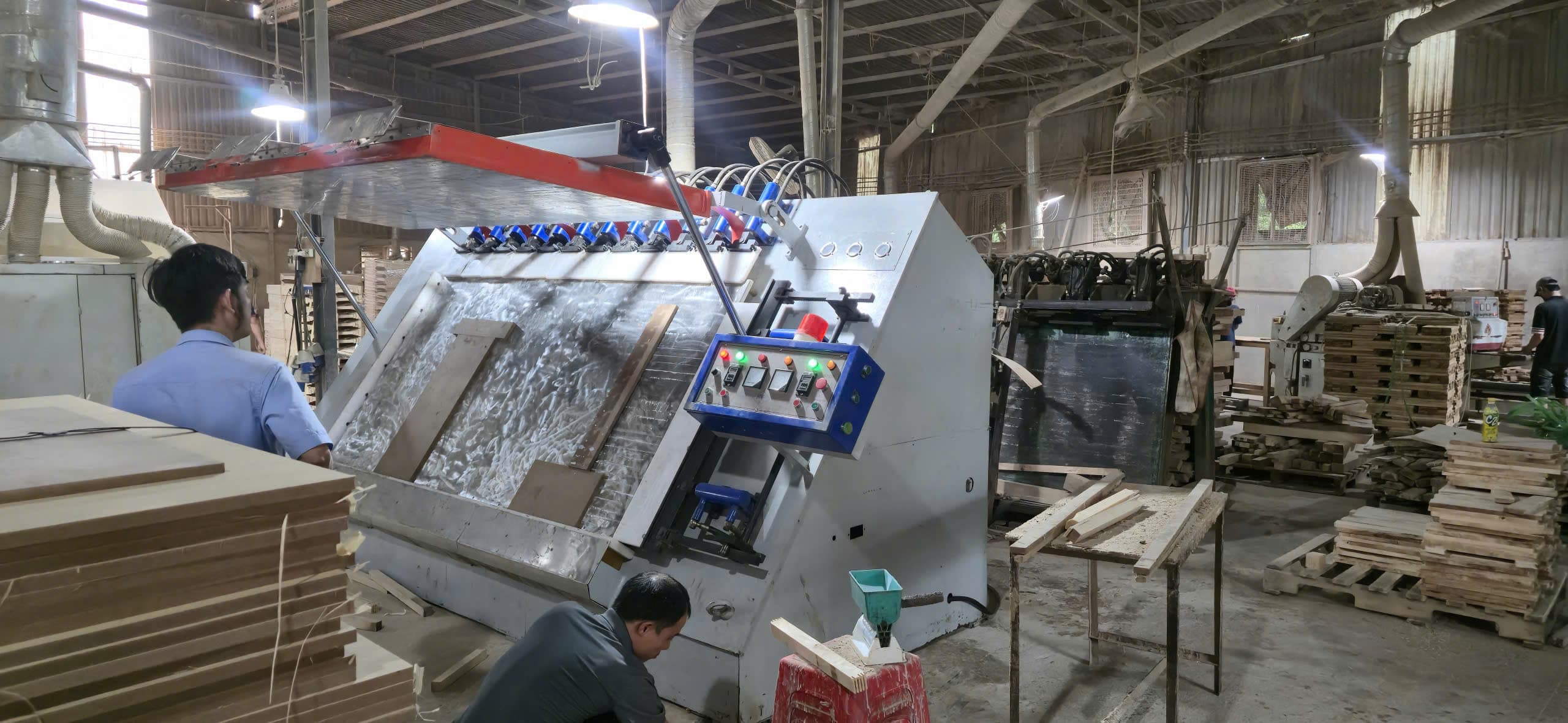

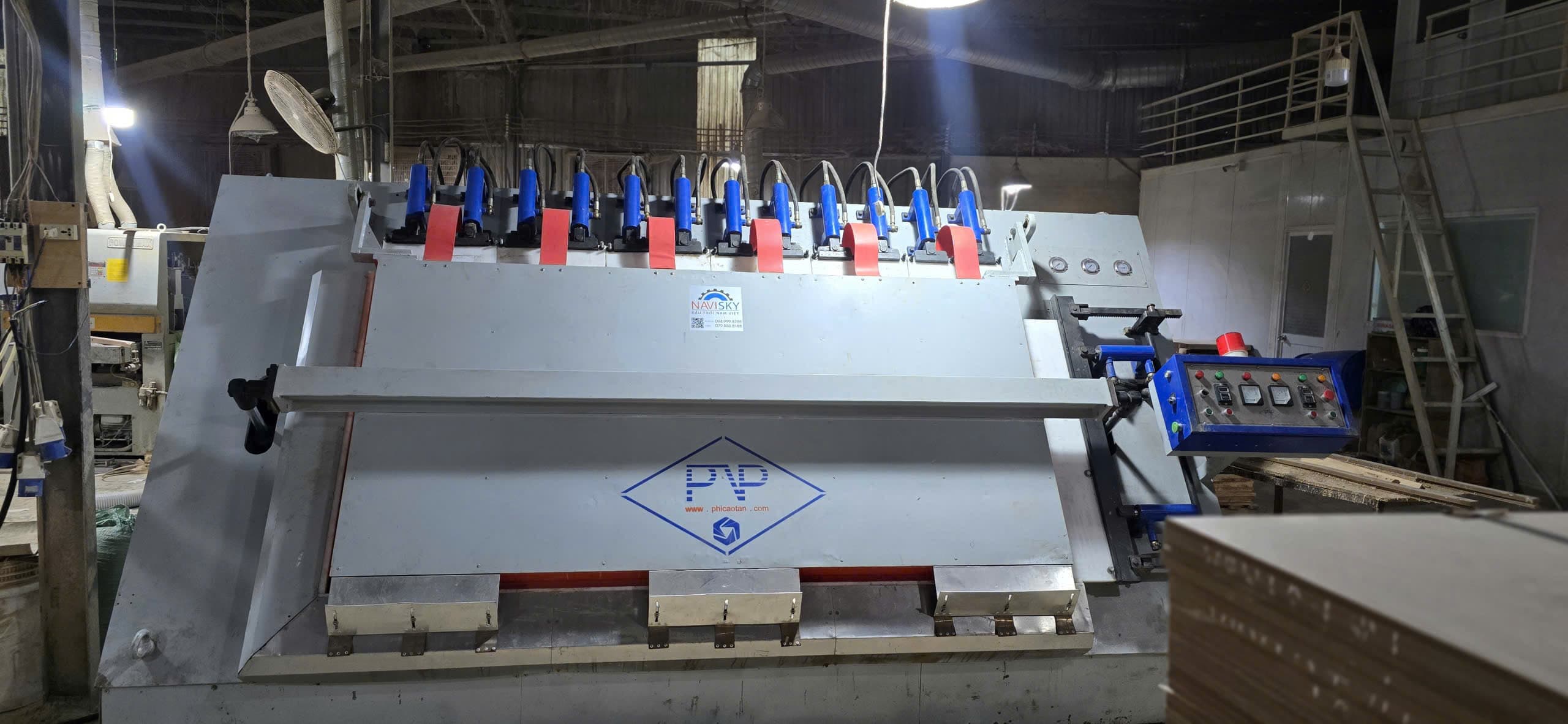

Real-world installations
Plan your A-frame pressing line
Share your frame dimensions; we deliver HF generator sizing, fixtures, and commissioning support.
Share how you're planning to use the High-Frequency A-Frame Press
Tell us about material dimensions, cycle time, and any automation you need. We'll tailor the specification and options before the demo.
