Adaptive pressure zoning
Independent hydraulic cylinders equalize pressure across irregular stock and reduce rework.

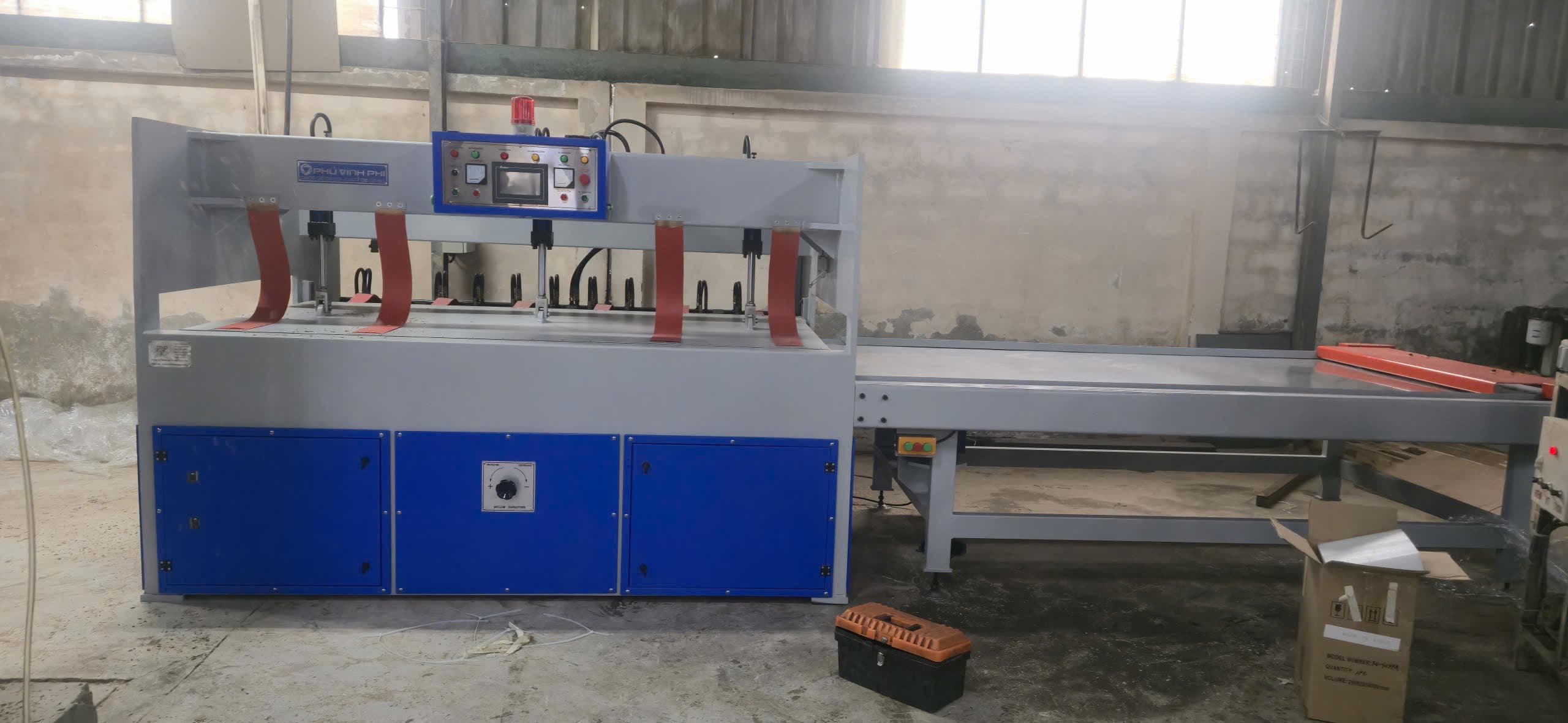

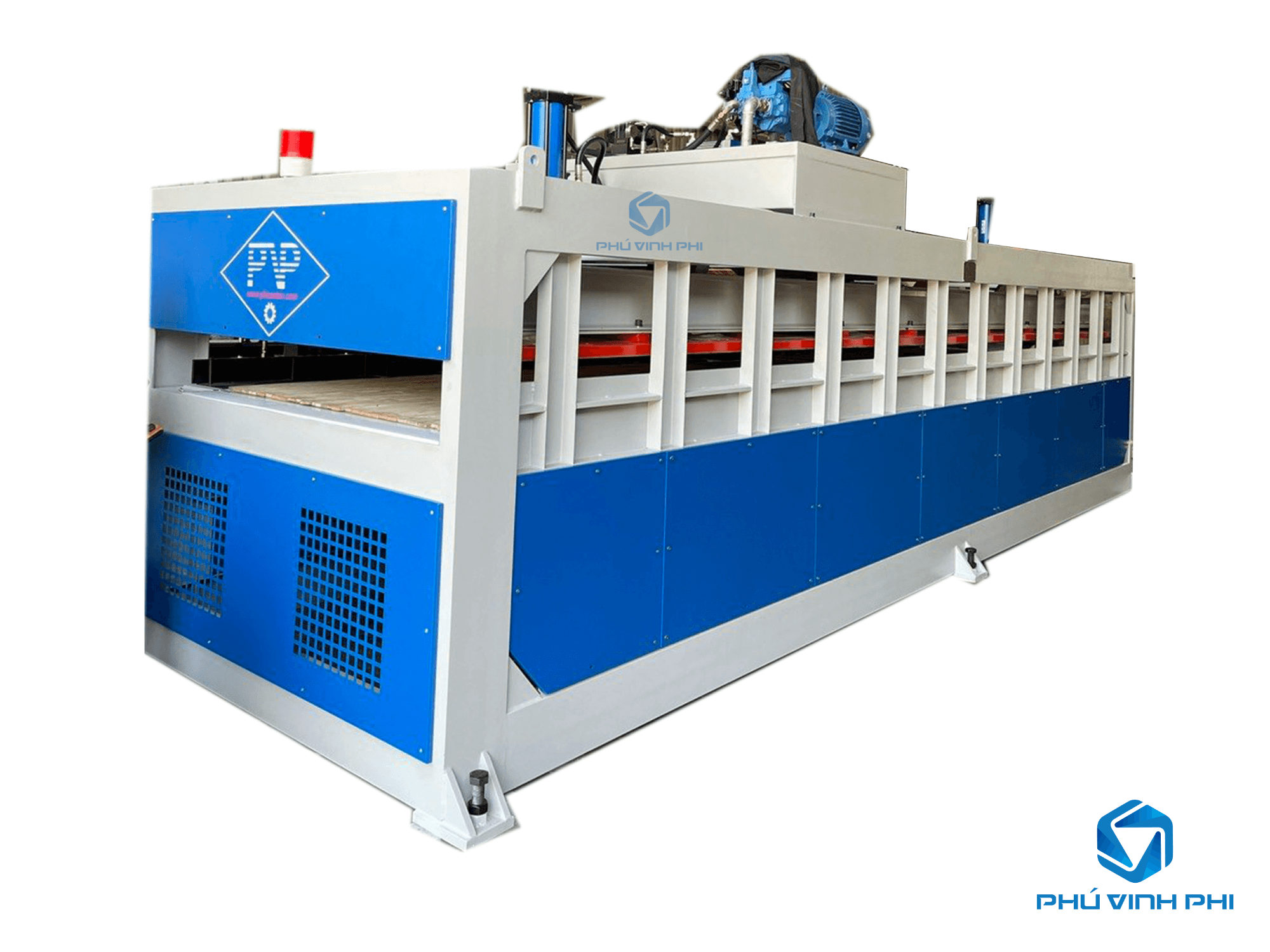

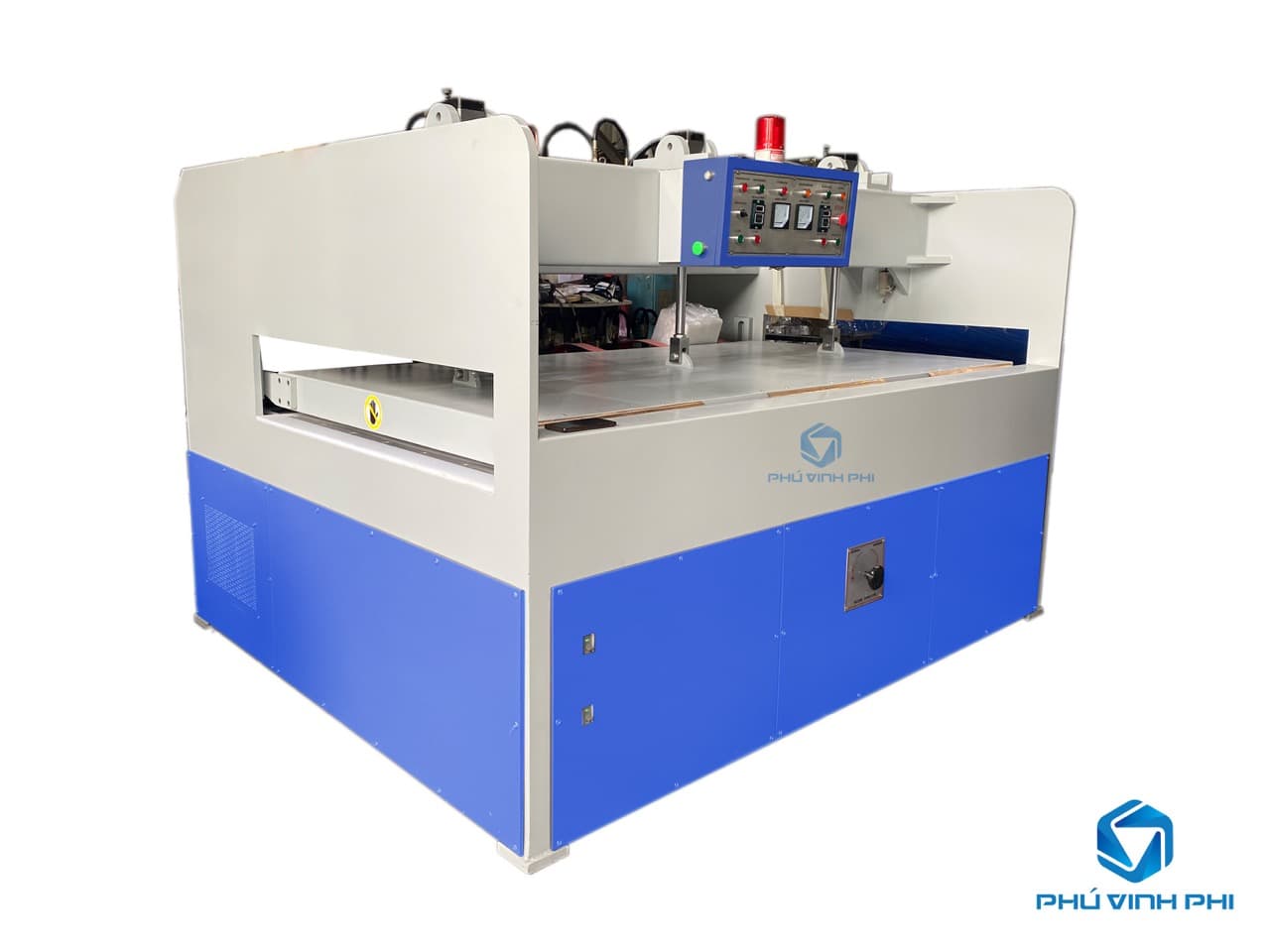

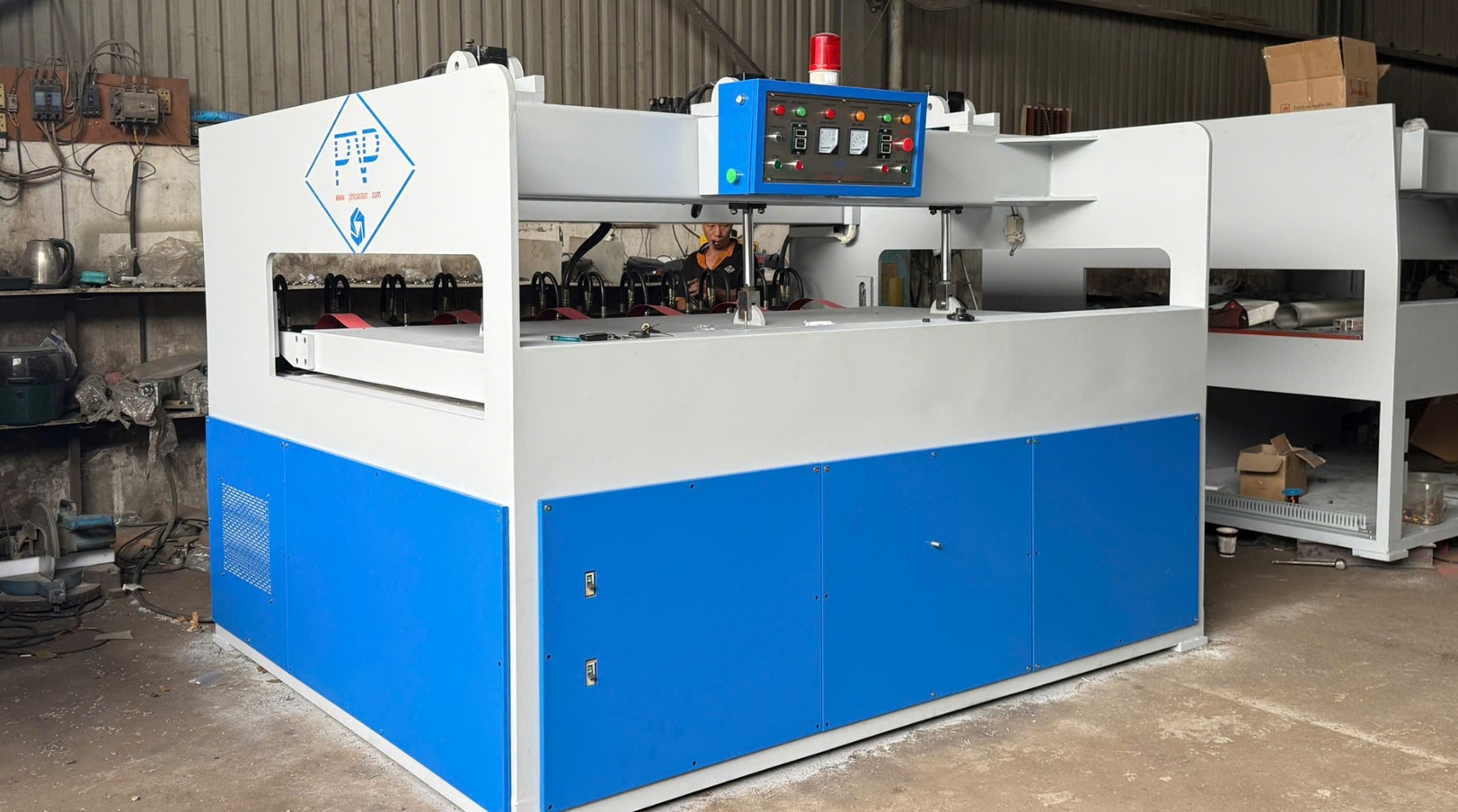

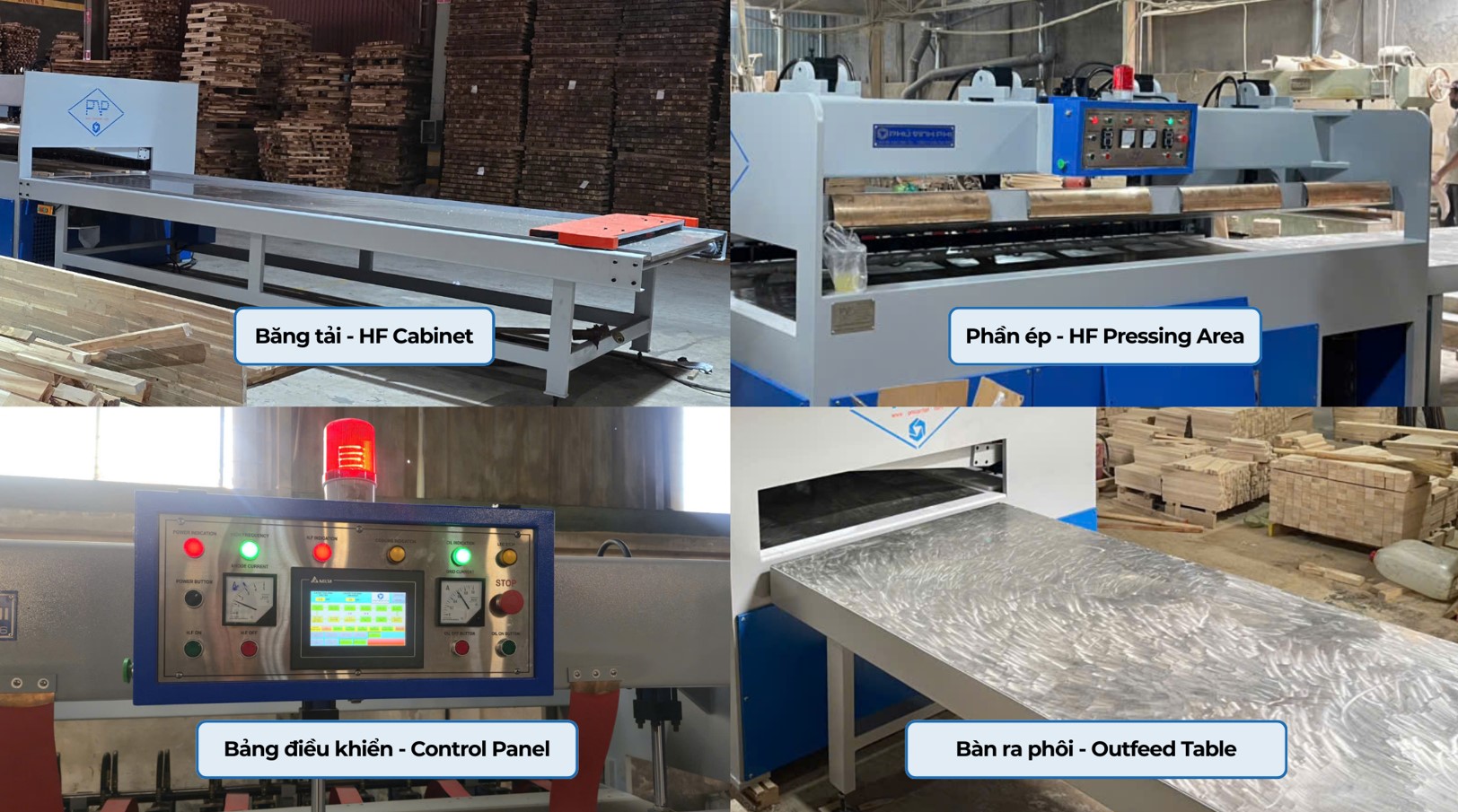

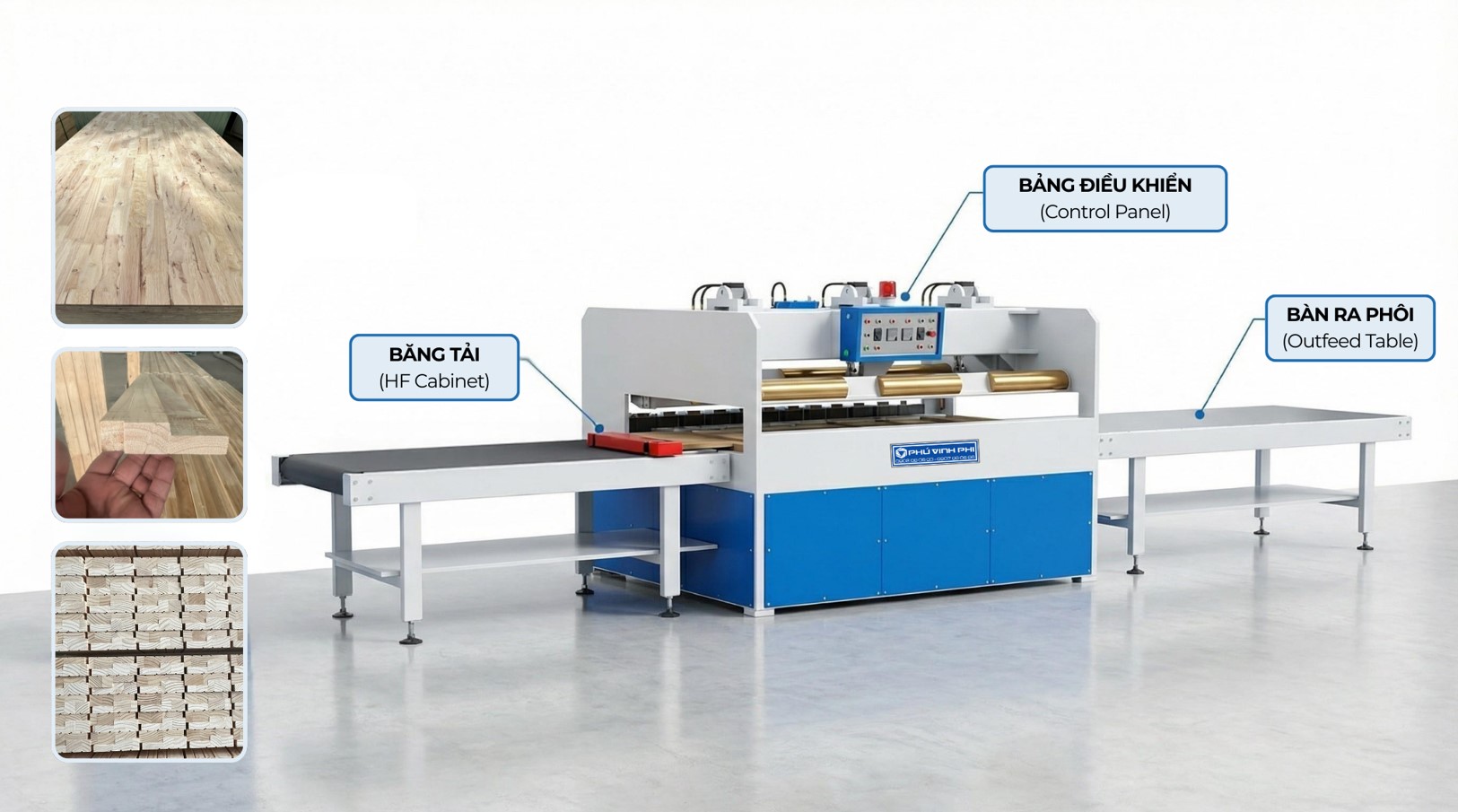

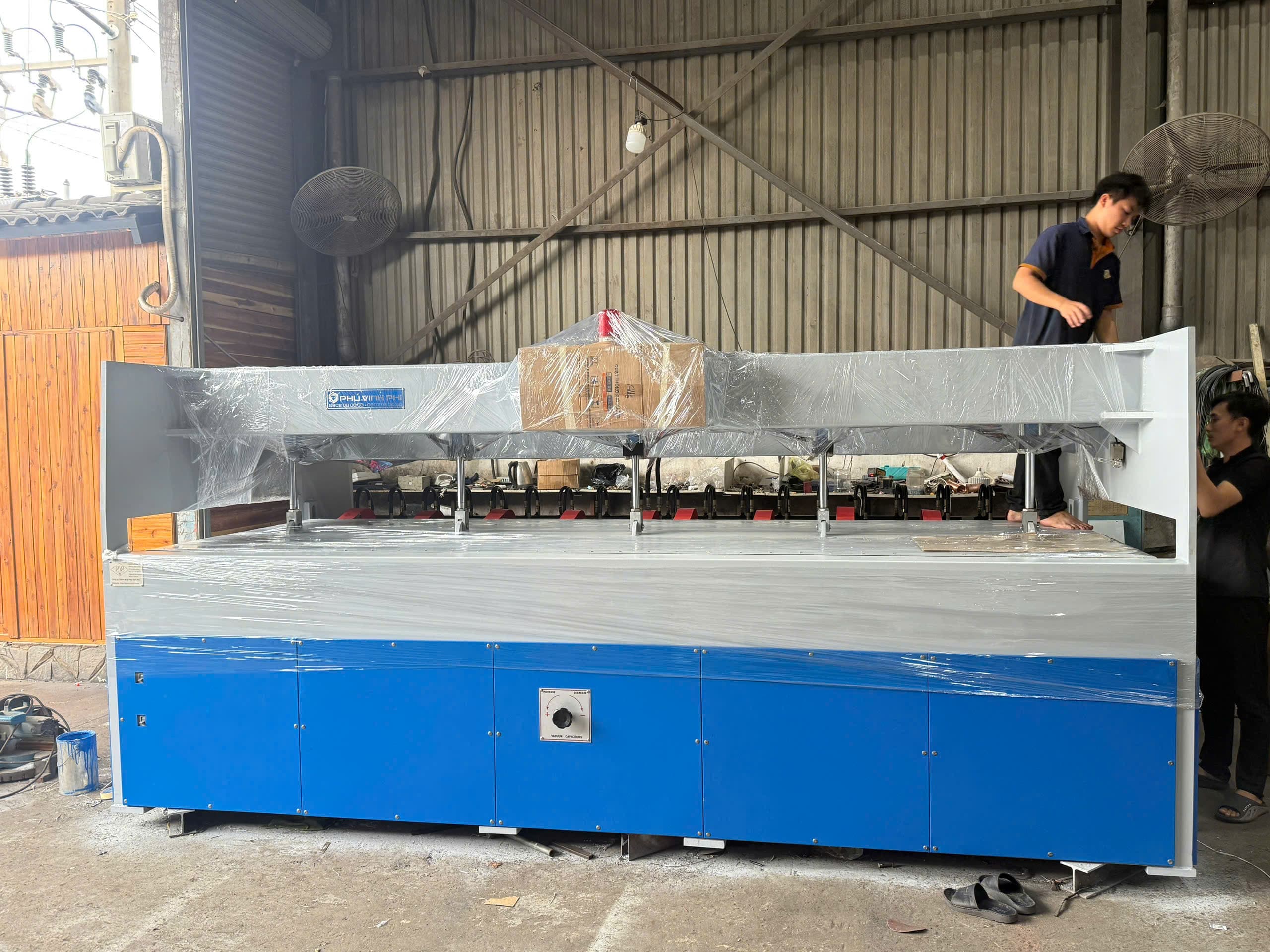

Horizontal High-Frequency Press
Product Information
Model CodeHFRWB-60KW-60125-PVP
BrandPhu Vinh Phi
OriginVietnam
Share Product

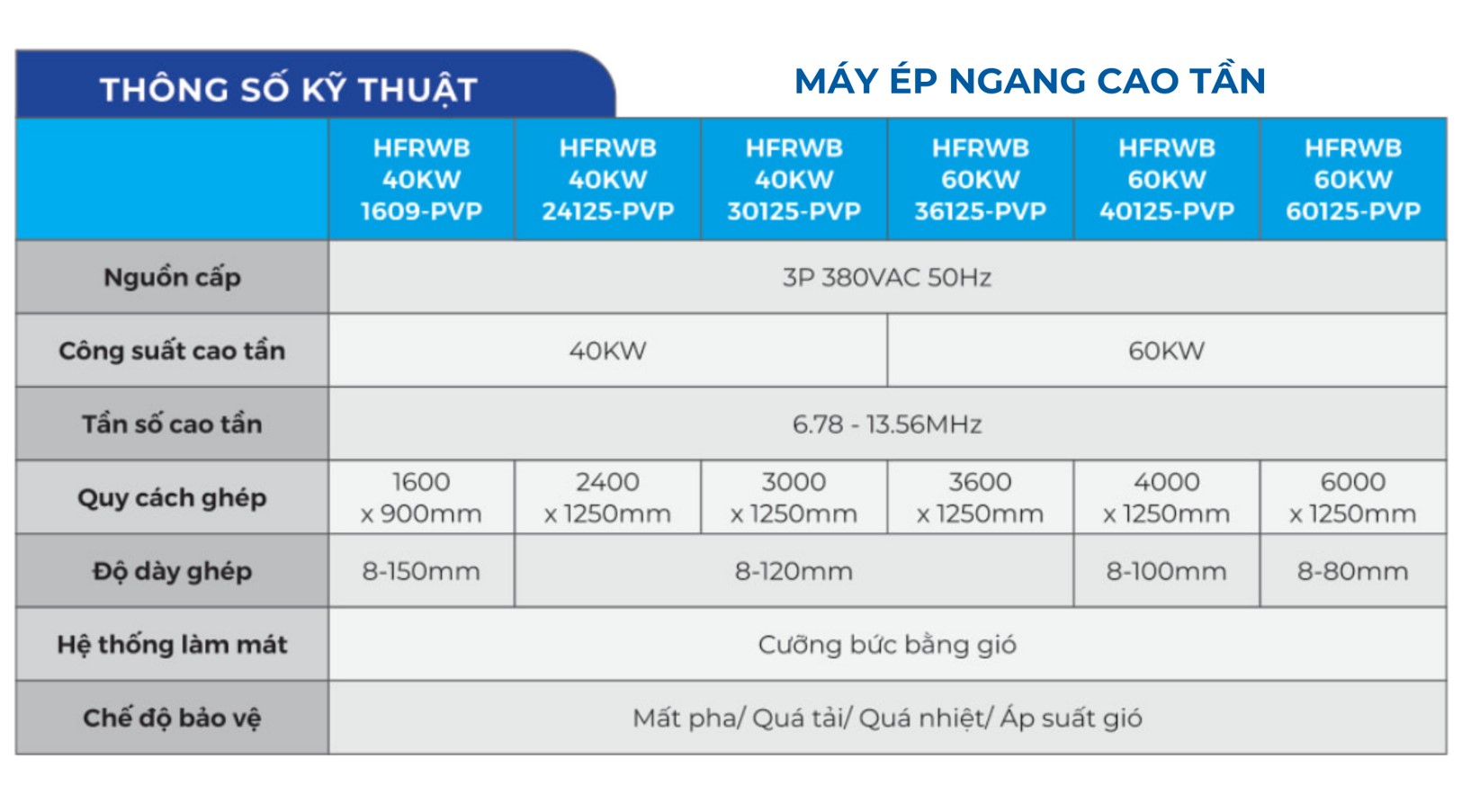

TECHNICAL SPECIFICATIONS OF HORIZONTAL HIGH-FREQUENCY PRESS
| Model | Power Supply | High-Frequency Power | High-Frequency Frequency | Joining Dimensions | Joining Thickness | Cooling System | Protection Mode |
|---|---|---|---|---|---|---|---|
| HFRWB 40KW 1609-PVP | 3P 380VAC 50Hz | 40KW | 6.78 - 13.56MHz | 1600 x 900mm | 8-150mm | Forced air cooling | Phase loss/ Overload/ Overheat/ Air pressure |
| HFRWB 40KW 24125-PVP | 3P 380VAC 50Hz | 40KW | 6.78 - 13.56MHz | 2400 x 1250mm | 8-120mm | Forced air cooling | Phase loss/ Overload/ Overheat/ Air pressure |
| HFRWB 40KW 30125-PVP | 3P 380VAC 50Hz | 40KW | 6.78 - 13.56MHz | 3000 x 1250mm | 8-120mm | Forced air cooling | Phase loss/ Overload/ Overheat/ Air pressure |
| HFRWB 60KW 36125-PVP | 3P 380VAC 50Hz | 60KW | 6.78 - 13.56MHz | 3600 x 1250mm | 8-120mm | Forced air cooling | Phase loss/ Overload/ Overheat/ Air pressure |
| HFRWB 60KW 40125-PVP | 3P 380VAC 50Hz | 60KW | 6.78 - 13.56MHz | 4000 x 1250mm | 8-100mm | Forced air cooling | Phase loss/ Overload/ Overheat/ Air pressure |
| HFRWB 60KW 60125-PVP | 3P 380VAC 50Hz | 60KW | 6.78 - 13.56MHz | 6000 x 1250mm | 8-80mm | Forced air cooling | Phase loss/ Overload/ Overheat/ Air pressure |
- Manufacturer: Phu Vinh Phi - Vietnam
- Origin: Vietnam
- Condition: New 100%
- Warranty: 18 months
- Recommendation: Weekly cleaning of electrical components
Key Features:
- Machine manufactured with imported components from Taiwan, Japan
- 30-40% faster and drier wood bonding capability thanks to air-cushion capacitor current adjustment
- Smart safety protection features: phase loss, overload, overheat, air pressure
More details in technical specifications section
Engineering advantages designed into every machine
Intelligent heating curves
Stores up to 50 gluing recipes with dwell time, power level, and cooling sequence.
- Moisture equalization sensors stabilize adhesive penetration before curing.
- Closed-loop HF monitoring prevents arcing and extends electrode lifespan.
- Optional automatic glue spreader synchronizes with press loading.
Ideal applications

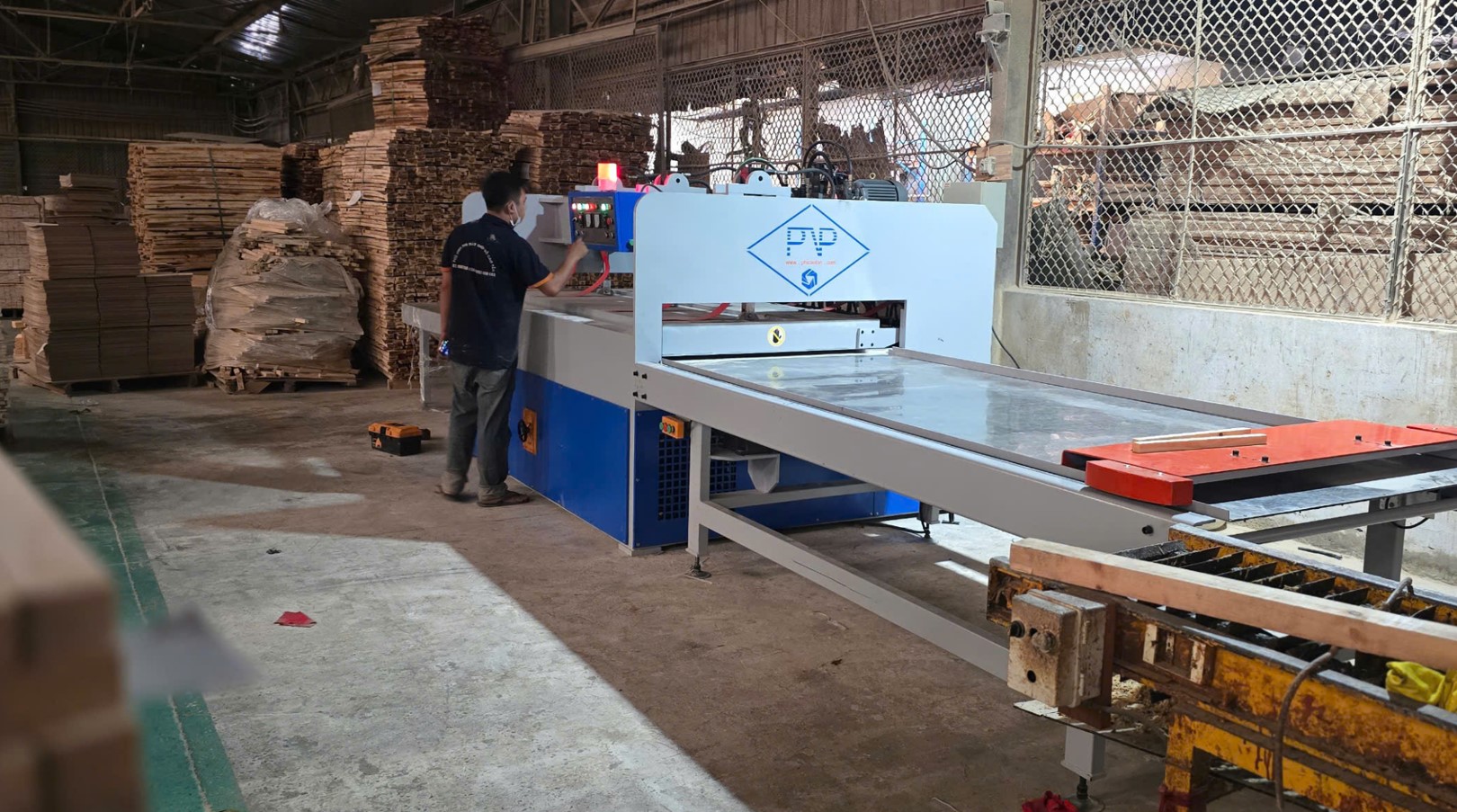

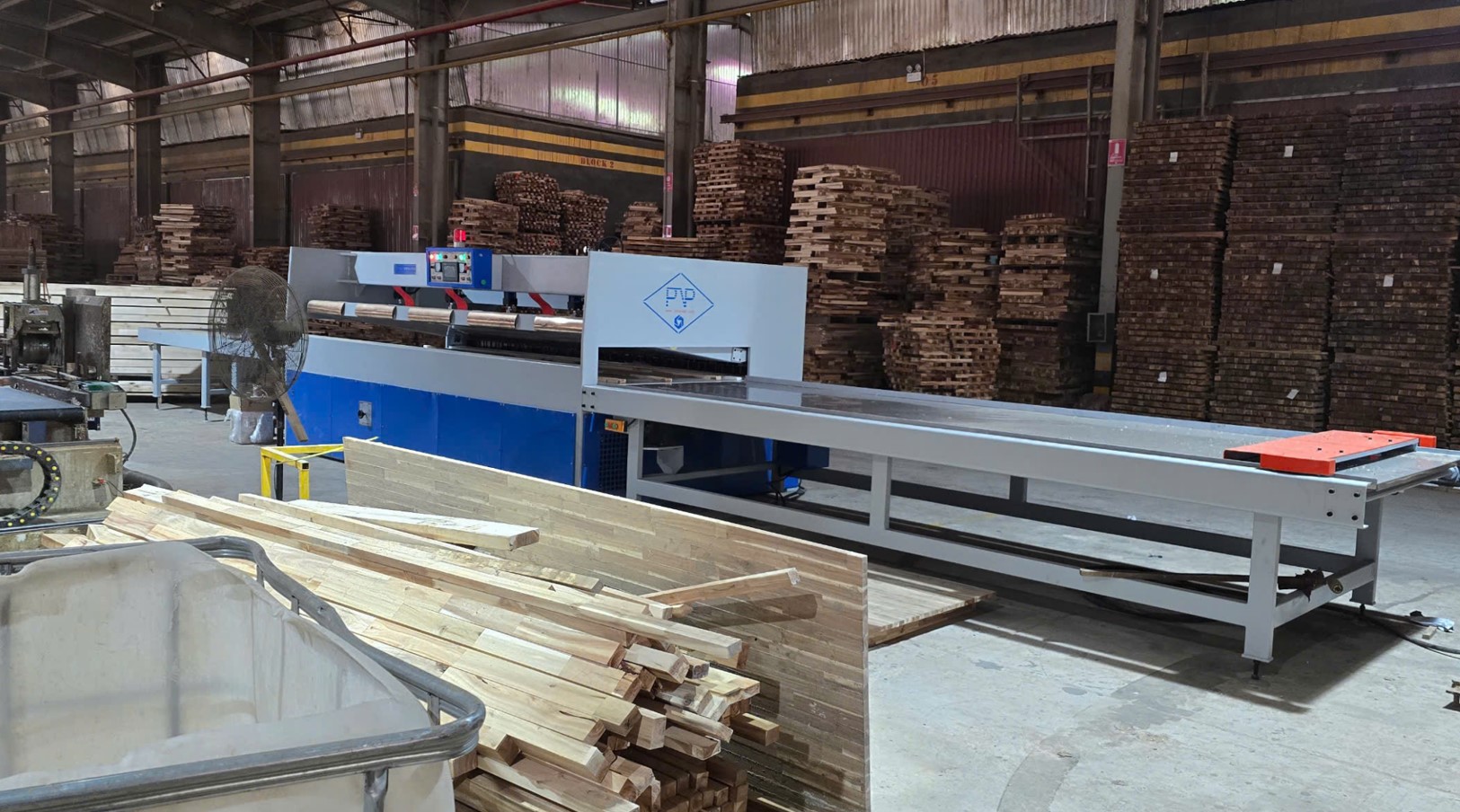

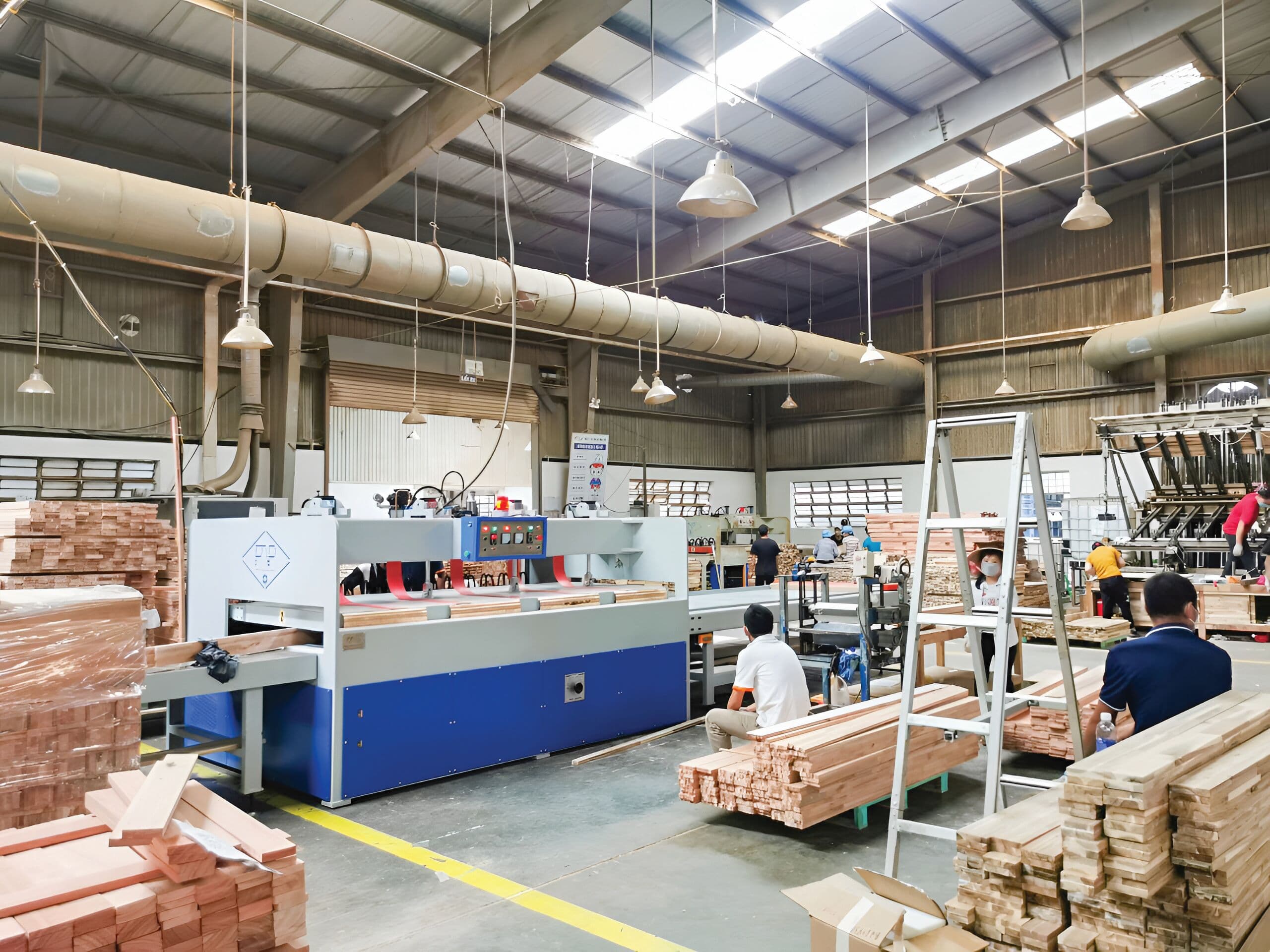

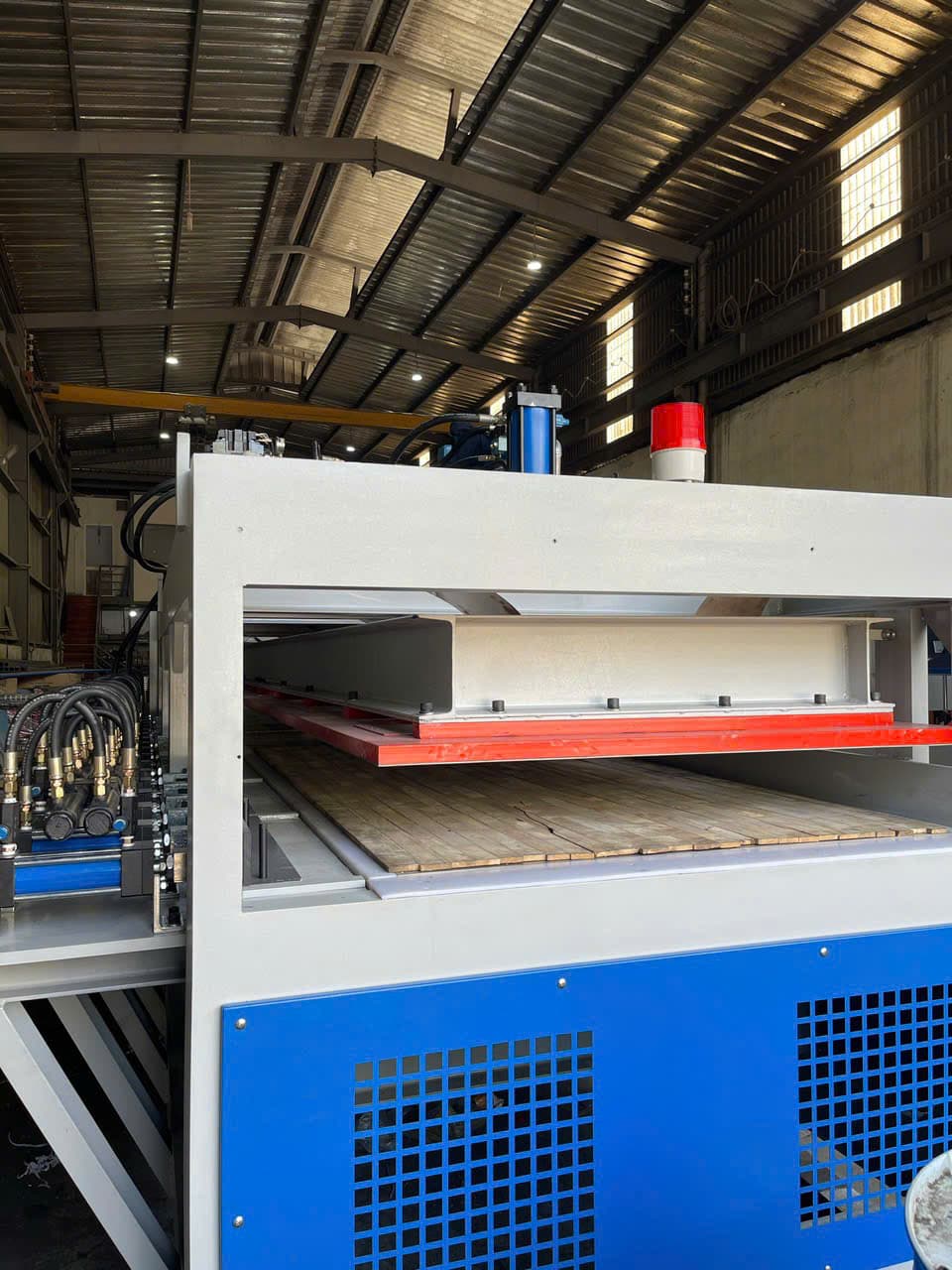

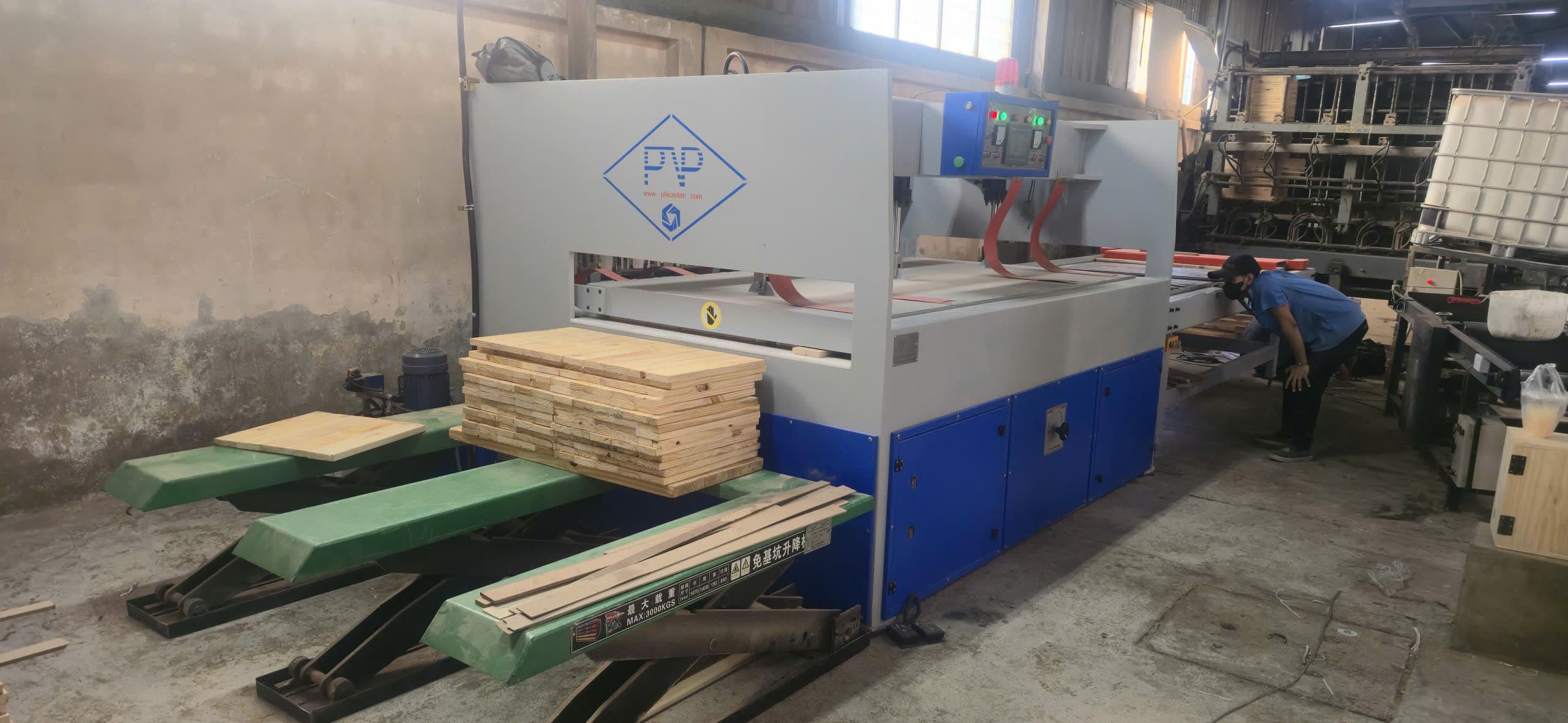

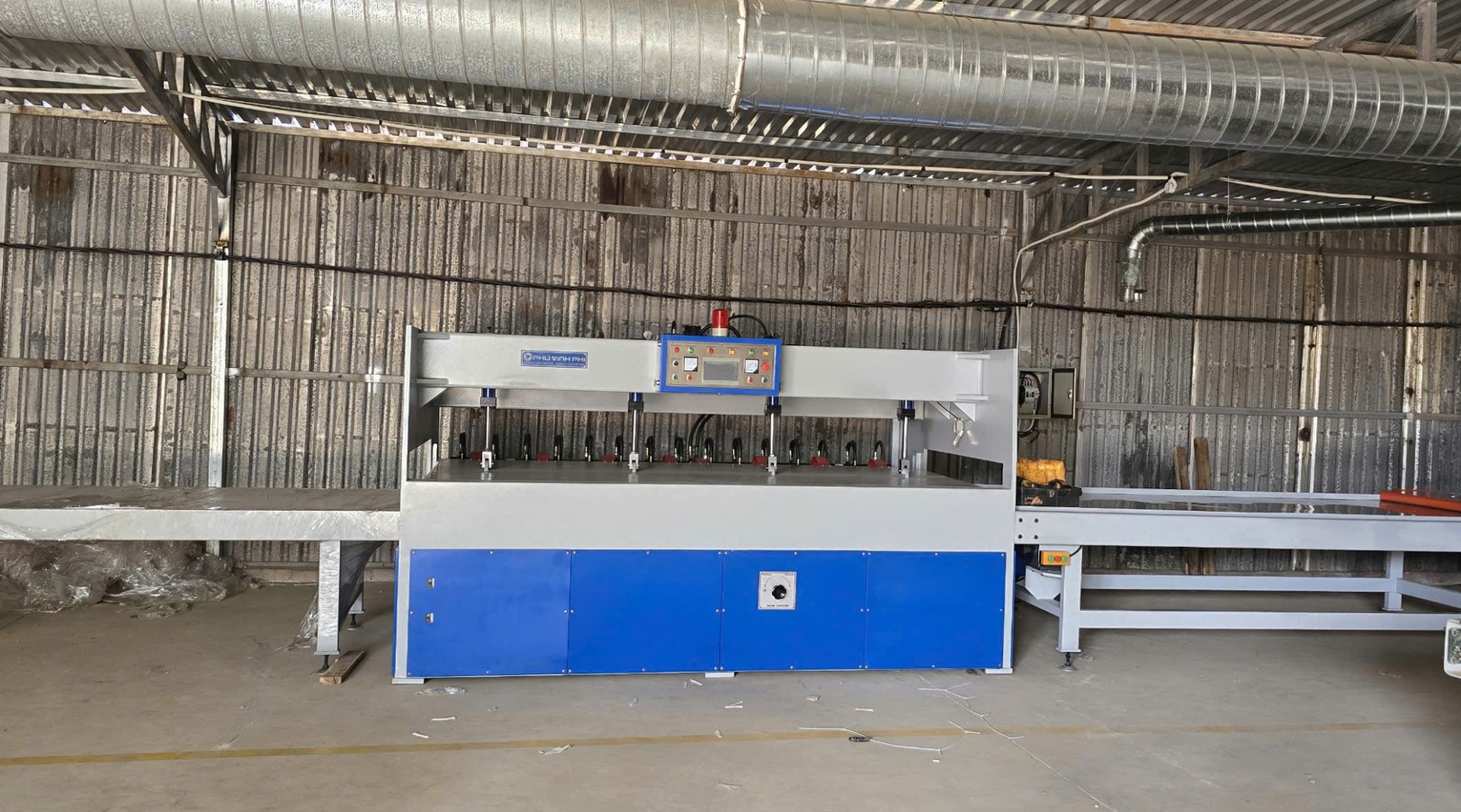

Real-world installations
Speak with our horizontal press specialists
We configure beam spacing, HF power, and automation to match your panel dimensions and adhesives.
Share how you're planning to use the Horizontal High-Frequency Press
Tell us about material dimensions, cycle time, and any automation you need. We'll tailor the specification and options before the demo.
