Automatic width adjustment
Motorized clamps adjust to new frame sizes at the touch of a button.

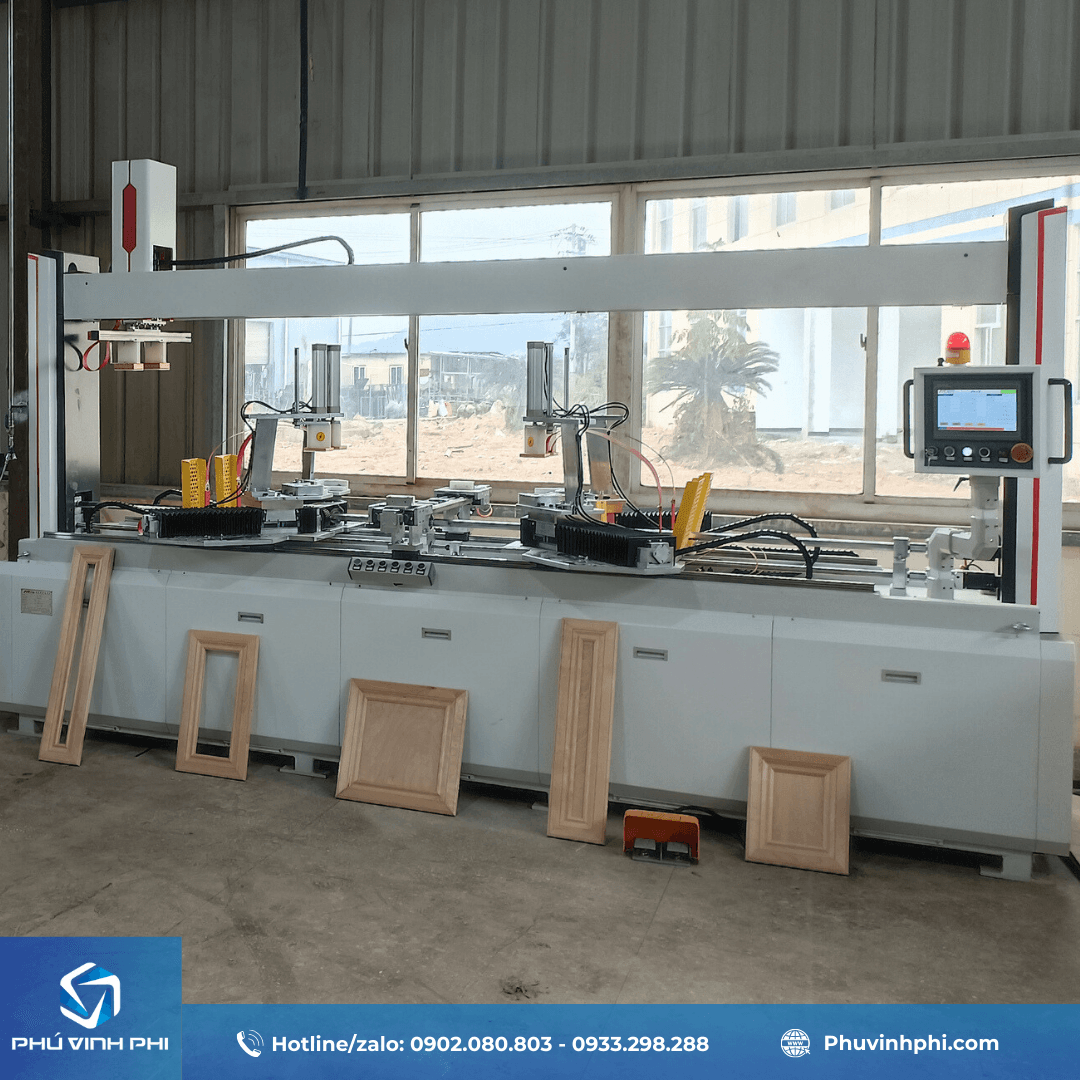

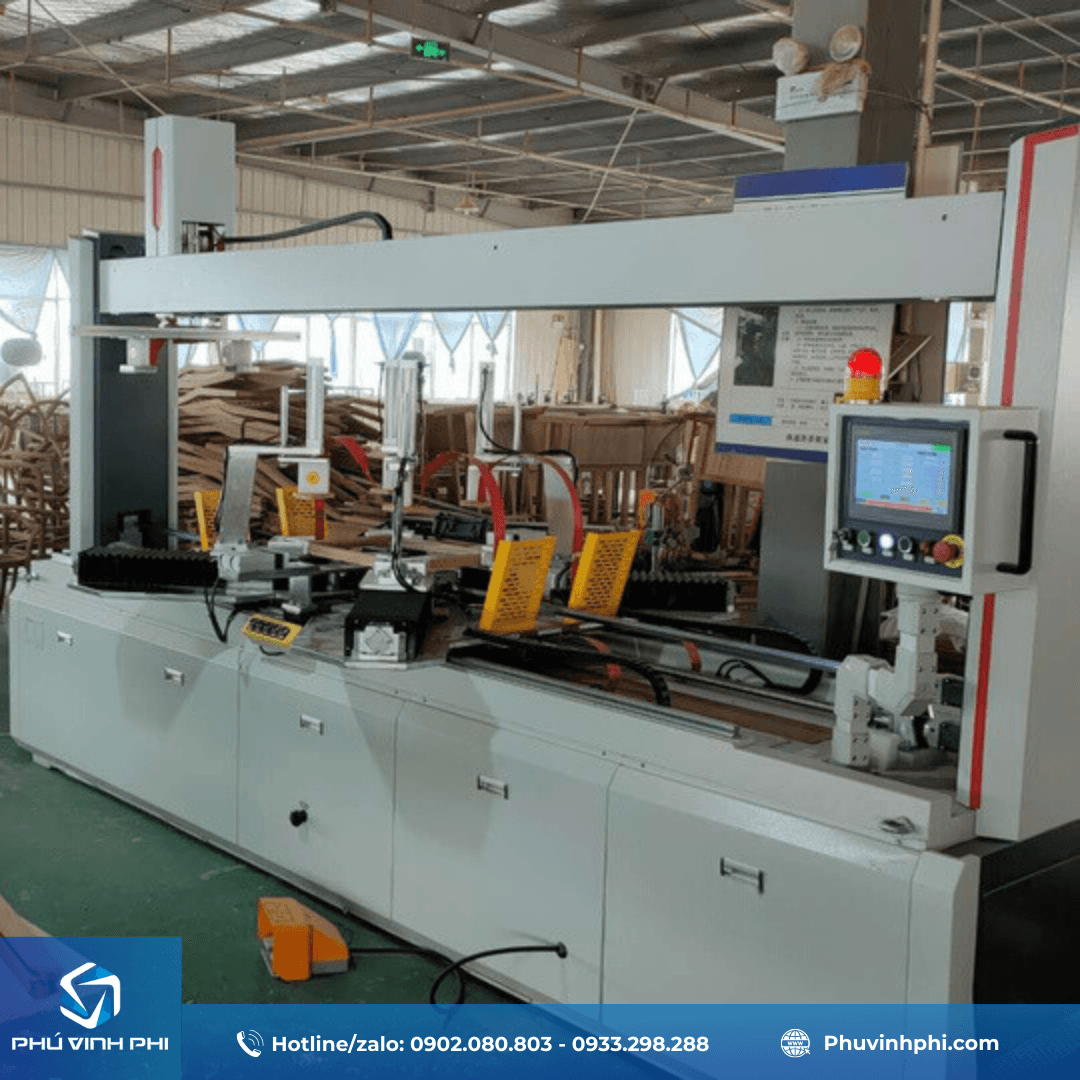

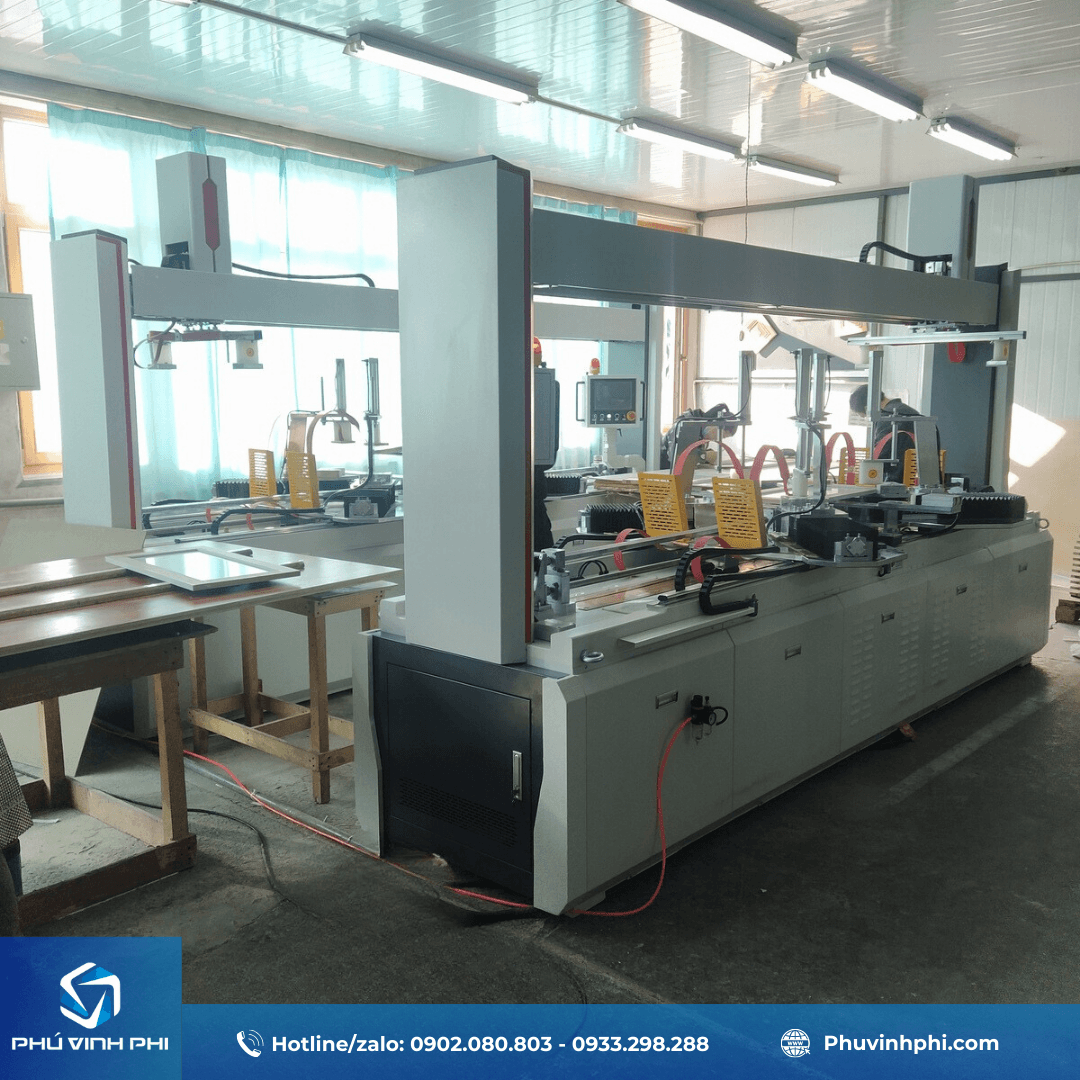

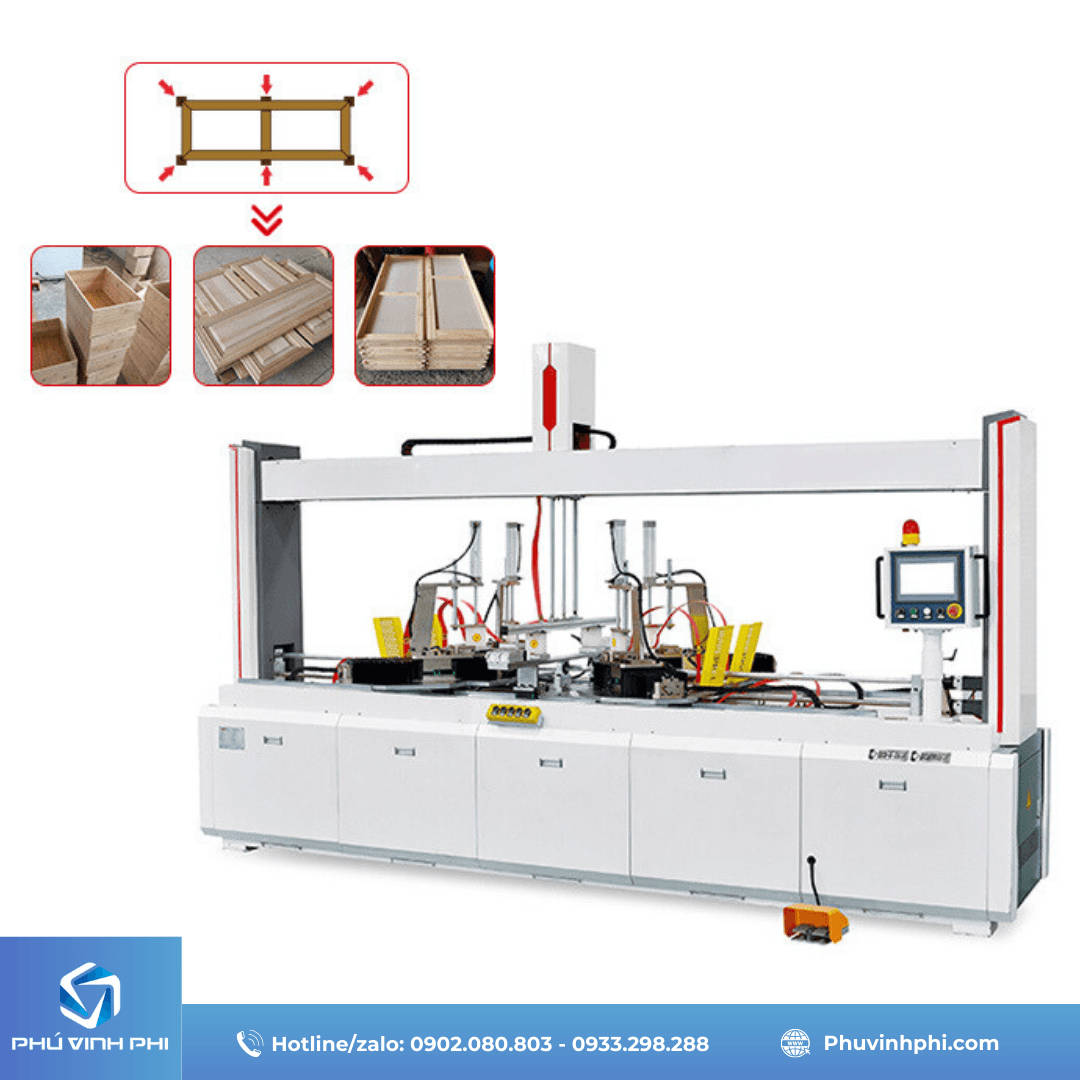

High-Frequency Frame Press
Product Information
Model CodeWFA-PVP
BrandPhu Vinh Phi
OriginVietnam
Share Product
TECHNICAL SPECIFICATIONS OF HIGH-FREQUENCY FRAME PRESS
| Model | Power Supply | High-Frequency Power | High-Frequency Frequency | Pressing Pressure | Wire Pressure | Joining Pressure |
|---|---|---|---|---|---|---|
| WFA-24696-PVP | 3P 380VAC 50Hz | 20kW | 6.78-13.56MHz | 6T | 25T | 4T |
| WFA-246125-PVP | 3P 380VAC 50Hz | 20kW | 6.78-13.56MHz | 6T | 25T | 4T |
| WFA-305125-PVP | 3P 380VAC 50Hz | 20-30kW | 6.78-13.56MHz | 6T | 30T | 4T |
- Manufacturer: Phu Vinh Phi - Vietnam
- Origin: Vietnam
- Condition: 100% New
- Warranty: 18 months
- Recommendation: Contact Phu Vinh Phi - Vietnam now for more advice on products, services, and offers
Key Features:
- 3-way pressing pressure ensures efficiency, solid finished products, and better joints
- HF heating enhances wood quality and extends lifespan
Engineering advantages designed into every machine
Integrated corner gauges
Digital readouts confirm squareness before curing starts.
- Clamps synchronize to avoid twist and racking.
- HF heating only activates once frame is perfectly aligned.
- Optional barcode linking for production traceability.
Ideal applications

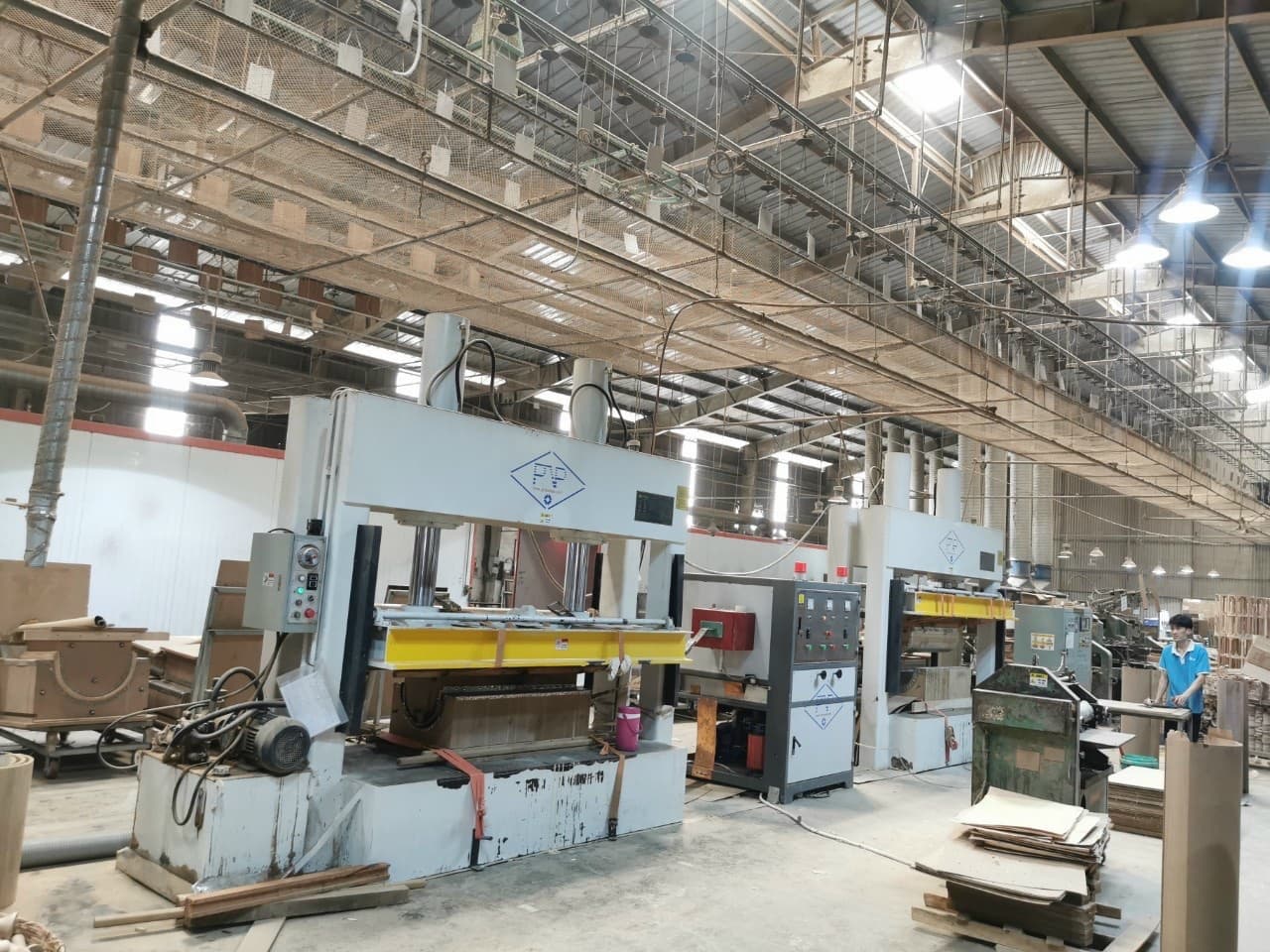

Real-world installations
Let us size the press for your workflow
Share frame dimensions, adhesive type, and target throughput for a complete setup proposal.
Share how you're planning to use the High-Frequency Frame Press
Tell us about material dimensions, cycle time, and any automation you need. We'll tailor the specification and options before the demo.
